Brand:Gaotian
Send Inquiry

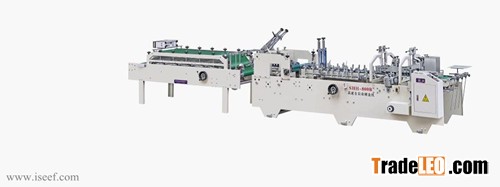

SHH-800 series paste box machine possesses a fairly high stability, strong universality, wide application and flexible and convenient debugging. It’s widely used for paste manufacturing process in medicine box, wine box and cultural articles box etc.Major technical index
Style Type of boxes (A-max) (A-min) (B-max) (B-min) (C-min) (D-min) (E-min)
SHH-800B box 700mm 70mm 620mm 110mm 8mm 70mm 51mm
SHH-1200B box 700mm 70mm 840mm 110mm 8mm 70mm 51mm
Characteristics
Linear velocity 0~220m/min
Suitable paper quality 210~800g/m² Card-paper
Paste box basic form One-side edge pastes, two-side edge pastes.
Feeding way Automatically and continuously feeding
Adhesive Solute type
Needed power 220V 2.2KW
Weight 1200KG
Overall Size 5500x900x1300mm
5500x1200x1300mm
The scope of Count 0~999999
