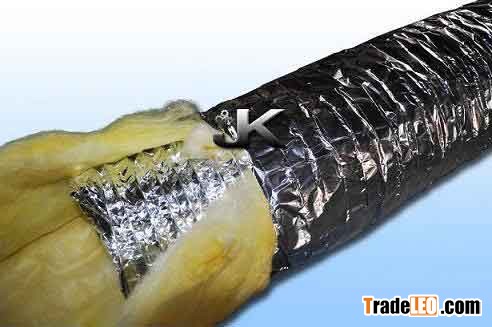

The insulation aluminum flexible duct machine can produce both insulated aluminum duct and non-insulated aluminum flexible duct. The insulation for aluminum flexible duct packages including the Aluminum flexible making machine, and the Forming Molds (Mandrels), the common used size from 4 inch to 20 inch , the 10 meters Run-off table , 10 meters insulating table and Insulation roll dispenser, Insulation sleeves to suit 25 mm thickness insulation for 4 inch to 20 inch, and packing bins from 4 inch to 20 inch.Features
1 Insulation
2 Both the core and the cover producing
3 4 inch ~ 20 inch
4 Numicale temperature control
echnical Data
Model AFT2
Tube Diameter 4"~20"
Aluminum Foil Thickness 0.018mm~0.035mm
Stainless Steel Wire Dia. 0.08~0.18mm
Raw Material Single or Double layer aluminum composite(Alu.+PET+Alu.)
Strip width 35~65mm
Strip Speed Up to 5m/min
Main Power 1.5KW
Oven Heating Power 300W
Dimension 1700*850*1600mm
Weight 300Kg
