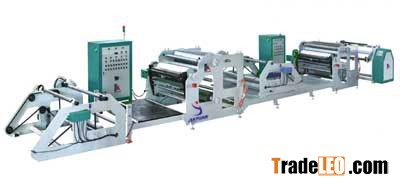

Range of application:JYT-II coating machine is suitable to produce hot melt double tapes, two-sided material coating, etc. hence to reduce the producing time&labor waste to speed up the production efficiency.
Main characteristics:
1. adopts high precision alloy steel coating die ensure high quality coating, efficaciously solve the problems of asymmetrical coating and crinking in producing double-side tapes;
2. double-post rewinding and unwinding realizes non-stop production.
Main parameter:
coating width:650mm-1500mm
coating quantity:15-200g/square meter
coating speed:100m/min
unwind diameter:1000mm
rewind diameter:1000mm
unwind:2sets
rewind:2sets
correction device:2 sets
power supply:380v 50hz
overall dimension:13000*1650*1520
highest temperature:230?
