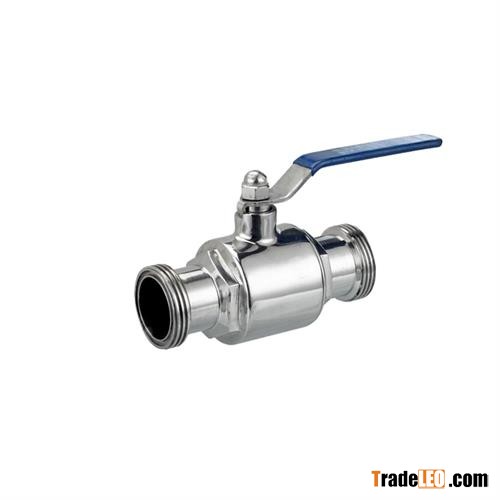

Design Features:Maintenance free operation
Compact and portable
Small operating torque
Valve seals and gaskets comply with FDA 177.2600
Manual handle, pneumatic actuator, electric actuator are interchangeable.
Specification:
Valve body can be SS304 or SS316.
Sizes are available from 1/2" to 4" (1/2", 3/4", 1”, 1 1/2", 2", 2 1/2", 3", 4")
DN15 to DN100 (DN15, DN20, DN25, DN40, DN50, DN65, DN80, DN100)
Temperature range: -4 ~ 302°F (-20 ~ 150°C), -22 ~ 392°F (-30 ~ 200°C) option.
End connections: tri-clamp / tri-clamp, others available upon request.
Valve seat: PTFE
Max. working pressure: 145psi (10bar)
Surface treatment: Ra 16 ~ 32µin (0.4 ~ 0.8µm), Ra 32µin is the default.
Direct 2-way body.
Handle: 180°rotary handle.
