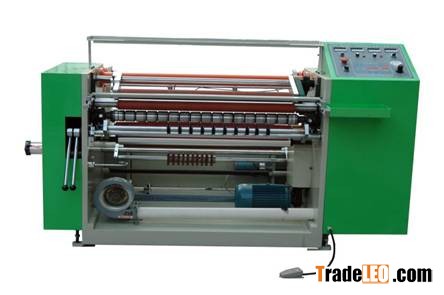

1. The design of this machine is from Corea and has got improved; It can reach the high quality request of slitting and rewinding fax paper, cash paper, and cardiogram printing paper, computer printing paper, taxi ticket, and commercial bill and so on. 2. It is applicable to slit the narrow scope paper, automatic counting the length (meter), setting the length, automatic stopping, also auto frequency conversion.
3. Automatic feeding and correct errors for unwinding, automatic blowing rim charge conveying device.
4. General control screen is unattached and conveniently operating.
Main technical parameter:
Max. Width of mother: 900mm
Max. Diameter of mother roll: 1200mm
Diameter of final roll: 120mm
Width of final roll: 30-900mm
Paper core of rewinding: 0.024 -1 Inch
Slitting speed: 100m/min
Tolerance of EPC: 0.3mm
Motor power: 3.0kw
Weight of machine: 2300kg
Overall dimension: 1800*2400*1100(mm)
