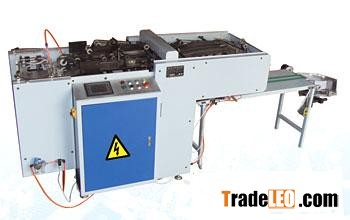

The machine is mainly used in the punching of account books, memorandum, calendars, cardboard, PP plate as well as other paper products. The paper distributing, transportation, hole-punching and paper-collecting can all be finished automatically. only one person needed to fulfill the whole operation. Main Tachnical Parameters
Max. Size 420*440mm
Min. Size 120*120mm
Max. punching thickness 2mm
Max. stack height 600mm
Paper suitable 60-200gsm
Speed 7200times/h.
Collection Style Lift style and conveyer belt style for choose.
Power 3P 380V 50HZ
Machine size 2200*1000*1300mm
Machine weight 800kgs
Air compressor 0.37kw(4-6BAR)
