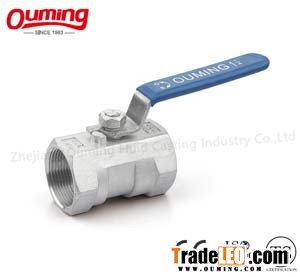

1PC Ball Valve, Reduced Bore, 1000W.O.G
Features

1. Blow-out Proof Stem
2. Investment Casting Body
3. Pressure Balance Hole in Ball Slot
4. Anti-Static Device Upon Request
5. Various Connection End Standard Available
6. Locking Device Available


Specifications

1). Size: 1"~ 2"
2). Material: 201, 304 , 316, 304L, 316L, WCB, CF8, CF8M, CF3, CF3M
3). Seat Material: PTFE, PPL etc.
4). Pressure: 1000WOG, 1000PSI, 1.6-6.4Mpa
5). Medium Temp.: -20° C~+180° C
6). Ambient Temp.: -20° C~+60° C
7). Availably Connection: NPT, BSP, BSPT, DIN259/2999, SW, BW, Clamp, Flanged
8). Port: Full Port, Reduced Port
9). Handle: Lever Handle, Locking Device Handle Upon Request.
10). ISO-5211 Mounting Pad for Actuator (option)
11). Operation: Manual, Pneumatic, Electric
12). Suitable Medium: Water, Oil, Air and Some Corrosive Liquid
13). Design Standard: ASME B16.34
14). Inspection and Testing: API 598
