Brand:ASINO
Send Inquiry

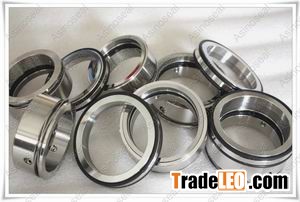

AS-RW01, to replace AES W01, Roten 7K, Vulcan 1688, have similar series which can repalace AES W02, W03, W04 seal.Wave spring design.
Operating Limits:
Temperature:-40——200
Speed: 18m/s.
Pressure: 8bar.
Standard size: 15.8-75mm
The Common Materials:
Seal ring: Car, Sic, Ssic, TC.
Secondary seal: NBR, EPDM, Viton etc.
Spring and metal parts: 304, 316.,HAST.C
Asinoseal also offer mechanical seals’ stocks for AES M01S, M05S, M02S, M04S, M03S, M010, P05U, P04U, P02/P02T, P04/P04T, P03, B05, B02/B012/B01, B07, M01,M02, M05, M06, M04, M03.
