•Finish: bright zinc plating to resist corrosion. •Construction: heavy gauge cold rolled steel, for strength.
•Bearings: double ball bearings with hardened swivel raceways.
•Design: low profile design for lower load height.

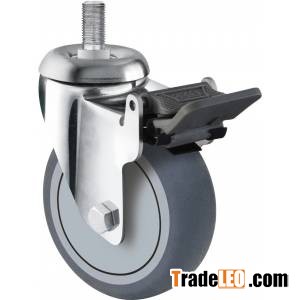

Product name:high quality grey locking pu esd caster wheel
Material Plated finish:PU Zinc/ Chromium
Wheel bearing: Double bearing 6001
Loading capacity (kg):Medium duty
Wheel diameter (mm):
Wheel width (mm)
Plate thickness (mm)
Fork thickness (mm)
Top plate size (mm)
Hole centre (mm)
Setting height (mm)
90 70 75 30 3.5 2.5 92*64 72*46 105
75 88 30 3.5 2.5 92*64 72*46 120
80 100 30 3.5 2.5 92*64 72*46 130
85 125 30 3.5 2.5 92*64 72*46 155
