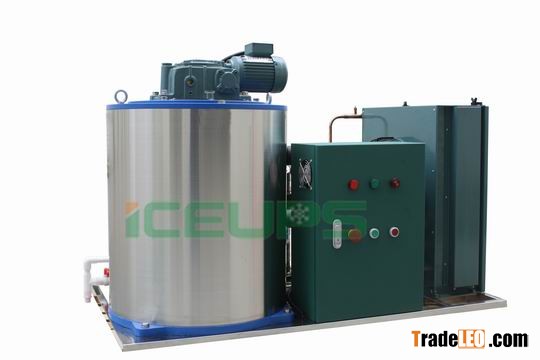

Commercial flake ice system is widely used in supermarket preservation, seafood restaurant, food processing, fruit and vegetable preservation, makes the seafood, fresh meat and meat products more fresh.Product Analysis
This serial product are applicabel for fresh water
Thickness of flake ice: 1.5~2.2mm
Applicable working condition: ambient temp: 0~55?, water temp: -2~45?
Standard working condition: ambient temp:25?, water temp: 18?, evaporating temp: -20?
Technique Parameter
Daily Output(kg/24h): 500
Cooling capacity(kcal/h): 2400
Compressor: Copeland(USA)/ Tecumseh(France)
Refrigerants: R404A
Total power(kw): 2.24
Power supply: Standard power: 380V-3P-50HZ, also can do according to customer special requirement as like 3 phase 60HZ,200/220V, 400V, 440V
Cooling type: air cooling
Ice outlet diameter(mm): F490
Eavaporator dimension(mm): 1270x1030x1810
