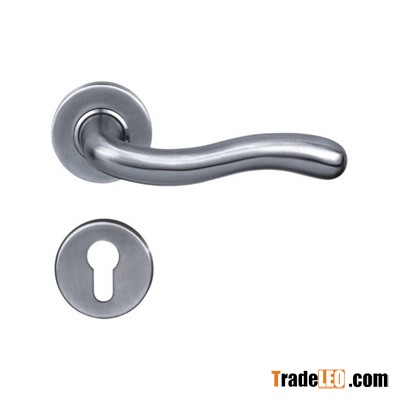

• Material: SUS304 or SUS316 solid stainless steel • Function: spring loaded; spring tested 200,000 times; unsprung models also available
• Rose: 53 (dia) x 8mm with steel inner supplied as standard
• Supplied with 8 x 8 x 100mm "heso" spindle, steel zinc plated
• Supplied with both metal and wooden fixing screws for door thicknesses 38-60mm
• Supplied with M6 grab screws and hardened alan key
• Euro hole escutcheons supplied upon request
• Other keyholes also available (BB, CH, OZ)
• Different rose and escutcheon sizes available: f52 x 10mm, f52 x 7mm, f45 x 10mm,f45 x 8mm
• Special size spindle and fixing bolts available for special orders
• Available finishes: satin (SSS), Polish(PSS), PVD, Antique Brass Plated(AB), Antique copper plated (AC)
• Technical suggestions would be highly appreciated
