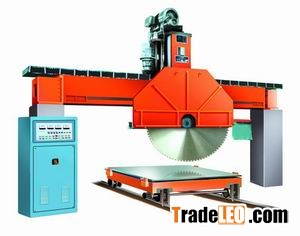

This machine, fitted with diamond blade and high-speed grinding technology, is suitable for cutting marble and granite. It is suitable for cutting granite or marble slabs over 10mm in thickness.Maximal service diameter of blade F2500
Maximal transverse stroke of blade 3500mm
Maximal elevation stroke of blade 1300mm
Dimensions of block conveying truck (L×W)
1720×1720mm
feed speed of saw blade 0~2000 mm/min
Maximal size of block to be cut (L×W×H) 3300×1600×1500mm
Total power 40kw
Overall dimensions(L×W×H)7800×5230×6030mm
Total weight 7400kg
