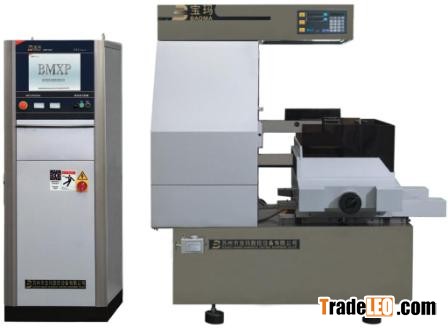

CNC WIRE CUT EDM DK7732F Unit DK7732F
Worktable size (L×W) mm 635×415
Table travel(X×Y) mm 320×400
Max. workpiece thickness mm 500
Max. taper angle/plate thickness degree/mm ±30°/100
Max. machining speed mm²/min 150
Precision Octagon mm =0.015
taper mm =0.1
Max. working current A 6
Roughness, three cutting µm =1.5
Wire diameter mm 0.15~0.2
Wire travelling speed m/min 5~11
Load of table Kg 400
Working solution working solution BM-2/BM-4 or Saponification Liquid
Working reservoir capacity L 56
Power supply 3N-380V/50Hz
Power consumption KVA 3
Wire guide frame Adjustable
Machine dimensions(L×W×H) mm 1450×1000×1550
Package dimensions(L×W×H) mm 1800×1400×1800
Machine weight Kg 1700
Controller type BMW-2009
