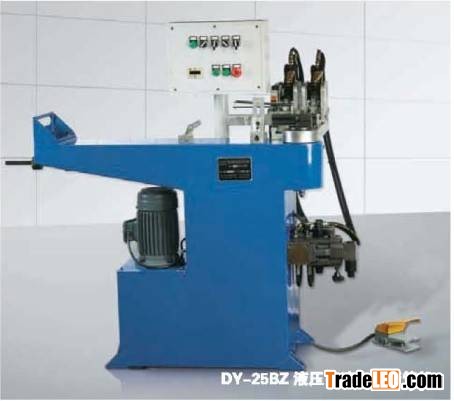

Pipe/ tube bending machne (DY-25) 1)stable performance.
2)with the help of mechanical rod,it is locked at clamp roller by itself.
3)Adjustable randomly in the rangle 0-90 degree , strong adaptability.
4)Refit special device according to different products.
maximum bending pipe-diameter 25.4*2mm
bending semi-diamet 25-120mm
bending angle 190degree
bending centre height 950mm
core-bar length 880mm
systems maximum pressure 8.5Mpa
discharge quantity of oil pump 6ml/r
power of electric machine 1.5kw
bending speed 5r/min
machine appearance 1200*650*1070(mm)
machine weight 228kg
