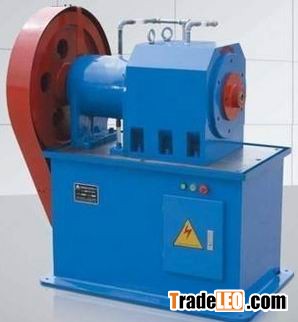

pipe/tube shaping machine( ZSG-40 type) ZSG-40 rotating hammer type pipe contracting machine
1 Forged thinly by cold-forge method and lengthen pipe fitting to be cylinder or conicalness.
2 Closed-circuit circulated lubricating system guarantees machines normal operation for long time .
3 Fixed with rational mould, process fittings is smooth and bright as well as high strength.
4 Simple operation and stable performance.
Item unit data
maximum pipe contracting length mm 280
maximum thickness of pipe wall mm 2.5
the installment dimension of mould (length-width-height) mm 280-6.5-86
rotation speed of main axis r/min 247
main power-driven power KW 7.5
cooling oil pump W/L 90/25
machine appearance(length-width-height) mm 1300-850-1500
pipe contracting shaping sample
