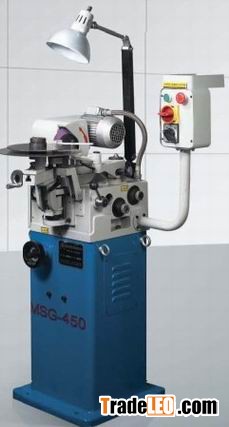

MSG-450 tooth sharpening machine This type of machine has reasonable structure and simplicity of operation,sharp and durable,it can regulate cutting angle,tooth form and tooth depth of the sawtooth easily and accurately.
It can make regulation rapidly according to the thickness of grinding piece.
The head can be adjusted upward or downward randomly,it can polish the chamfer directly without changing the grinding wheel.
With steplless speed regulation and center height displaying,it can grind circle arc tooth,triangular tooth and high/low pressure tooth.
Technical specification
O.D. of grinding saw blade 60-450mm
Max pitch of saw blade 25mm
Max tooth depth of saw blade 8MM
Max thickness of saw blade 8MM
Speed of grinding weel 4200RPM
Master motor AEEFA2-4/2 380V
Outline of the machine (L-W-H) 700-700-1300
Machine weight about200KG
