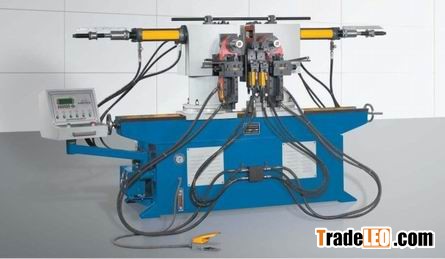

pipe bending machine 1) it can be divided into standard type and rotary type according to the base structure a standard type : bis space angle of this type can not be rotated , the two heads can be regulated from 0-180 randomly , but please consider the material factor B.Rotary type can make bis space rotation , and the two head can be regulated from 0-90 randomly;
2)with PLC control and text display , it has advantages of conveient operation and simplicity of manintenance
3)multi functions like manual , automatic half cycle complete cycle and so on;
4)you can shoose 1 or 2 pieces above every time for operation according to the outside diameter of material
motor power 5.5kw
max oil pressure 1.4 Mpa
max applicable tubes and pipes 38*1.8 mm
applicable bend radius 38-200mm
center margin of double bunk 190-1450mm
max bend angle 185
max processing quantity 19*2 pieces
machine weight 1500kg
machine size 2700*1100*1450
