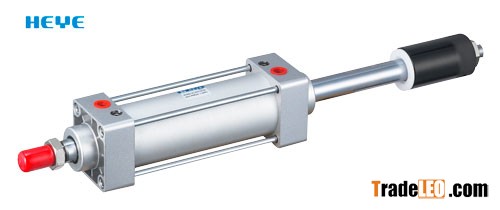

SCJ double action stroke adjustable cylinderSpecifications are as below:
1. Material of Cylinder Tube: Aluminum alloy
2. Normal Bore Size: 16mm~40mm
3. Normal Stroke Size: 25mm~700mm and stroke adjustable.
4. Piston Rod: Single rod (normal), double rod
5. Mounting Type: Basic, FA, FB, CA, CB, LB, Y, I, TC, TC-M, Bearing type, Floating type.
6. Cylinder kits: Available
7. Adjustable Cushion: With.
8. Magnet: With or without, according to the requirement of the customer
9. Sensor: With or without, according to the requirement of the customer.
10. Action: Double action
11.Proof Pressure: 1.35MPa
12. Max Operating Pressure: 0.9MPa
13. Min Operating pressure: 0.1MPa
14. Temperature: 0C~70C
15. Stroke tolerance: 0-1.4mm
16.Manufacturing History: 7 years
