PDC(Polycrystalline Diamond Compact) insert for drill bits which are sintered with selected diamond powder and tungsten carbide under high temperature and ultra-high pressure, they have high hardness, abrasion resistance and impact resistance, are widely used for oil/gas drill bit, rock drill and coal mining drill bit, also could be used for diamond tools for cutting, grinding, polishing.Specification: 0608,080608,0808,1004,1008,1313,1608,1613,1908,1913,1916

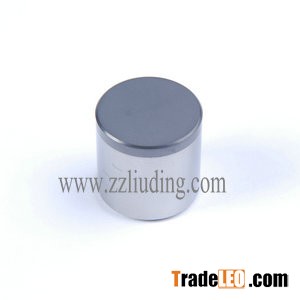

PDC (Polycrystalline Diamond Compact) cutters
Specification 0608 0808 1004 1008 1308 1313 1608 1613 1908 1913 1916
Diameter(mm) 6.00 8.20 10.00 10.00 13.3 13.44 16.00 16.00 19.05 19.05 19.05
Height(mm) 8.00 8.00 4.00 8.00 8.00 13.20 8.00 13.20 8.00 13.20 16.00
Non-standard could be made as your request.
