Brand:suke
Model:1625
MOQ:1 Sets
Feature:

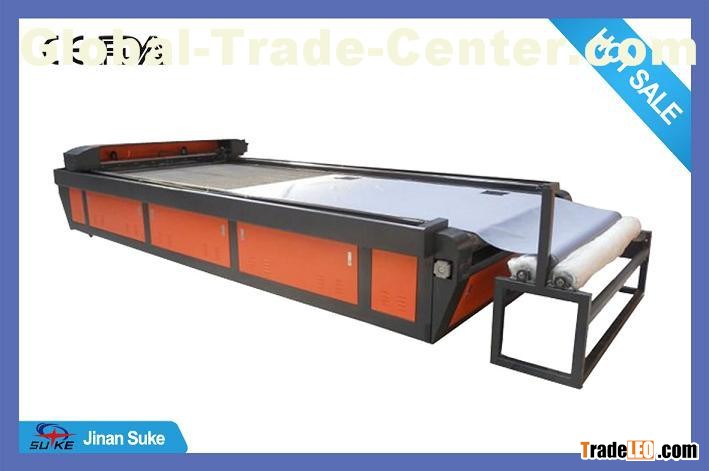

1.The auto-feeding system /rotating work table enable to cut soft materials in rolls automatically.
2.Fabric,PU,leather,canvas,plastic film and paper cutting are especially suitable.
3.imported lens and linear guide,more stable and higher accuracy.
4.CW5000/5200 chiller are recommended to prolong laser tube's life.
5.Adopt USB port and USB flash disk to transmit data,equipped with large caacity internal memory.
6.Accessories:water chiller,air pump,exhaust fan and machine software.
7.Double head is available to improve efficiency.
Technical parameter:
| Name | auto feeding Laser cutting machine | ||
| Model | SK1610 | SK1325 | SK1625 |
| Working area(mm) | 1600*1000 | 1300*2500 | 1600*2500 |
| Laser tube power | 80w/100w/130w/150w/180w (can be optional) | ||
| Laser tube type | Sealed CO2 laser tube or Reci laser tube,water cooling,10.6µm | ||
| Working life of tube | 1500 hours for ordinary laser tube;10000 hours for Reci laser tube | ||
| Cooling mode | circulating water cooling | ||
| Engraving speed | 0-1000mm/s | ||
| Cutting speed | 0-300mm/s | ||
| Resetting position accuracy | 0.01mm | ||
| Min shaping character | Chinese 2*2mm English1*1mm | ||
| Communication terminal | USB port | ||
| Control system | DSP | ||
| Drive system | Stepper motor | ||
| Supported graphic | BMP,PLT,CDR,DST,DXF,AI | ||
| Software supported | CoreDraw, AutoCAD ,Photoshop | ||
| Front and rear delivery function | Yes | ||
| Assistant equipment | Water pump, air pump, exhaust fans | ||
| Power adjustment | 0-100% controlling,no segment and adjusting by software | ||
| Power supply | AC110-220V 50-60HZ | ||
