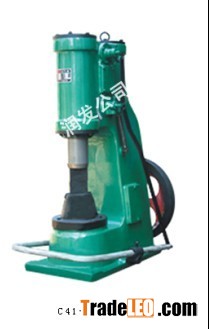

This pneumatic forging hammer is widely used for general Forging works,such as drawing-out,upsetting,punching,chiseling,forge,welding,bending and twisting,it is also used for forge in bolster dies.SPECIFICATION UNIT C41-16 kg Single C41-16kg
Max. hit energy kj 0.18 0.18
Height of working area mm 180 180
Hit number min-1 258 258
Max. square steel can be forged mm 20 x 20 20 x 20
Max. round steel can be forged(Diameter) mm ?22 ?22
Motor power kw 1 phase 1.5/220
3 phase 1.5/380 1phase1.5/220 3 phase 1.5/380
Speeds of motor r.p.m 1440 1440
Total weight kg 240 240
Overall dimensions(L*W*H) mm 584*390*952 584*390*952
