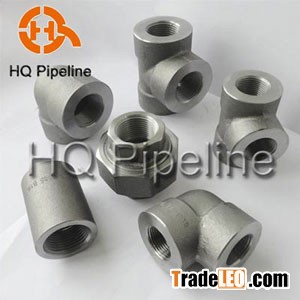

Forged Steel Pipe Fitting: Socket Weld Forged Pipe Fittings, Threaded Forged Steel Pipe Fittings
1. Forged Fittings Type: Elbow, cross, street elbow, tee, coupling, half coupling, cap, plug, bushing, union, outlet, sage nipple, bull plug, reducer insert, pipe nipple etc.
2. Connection: Socket Welded, Threaded
3. Size Range: 1/8" - 4"(6mm - 100mm)
4. Pressure Rating:
Threaded Forged Pipe Fittings: 2000LBS, 3000LBS, 6000LBS
Socket welding Wog 3000, 6000, 9000 LBS
5. Specifications:
1) Standard: ASME B 16.11, MSS-SP-79 83 9597
2) Material: ASTM A105, ASTM A182(F304, F304L, F316, F316L, F304H, F316H, F317L, F321, F11, F22, F91).
3) Size of raw material: Dia. 19-85mm round bar.
6. Technology: Forged
