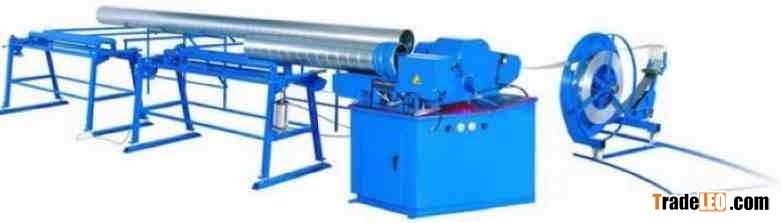

This machine at a reasonable price and high quality .Main Technical Specification:
Diameter range 80 – 1600mm
Thickness of strip 0.4 -1.3mm Glvanized steel
0.8mm Sinless steel
0.4-1.2mm Auminum
Strip Width standard 137mm up to 1mm
thickness, 140mm above. Other widths on request.
Lock seam Outside tube, on the inside on request.
Production speed Max. 60 meters/min. depending on material
Cutting system The pqtented flying slitter
Net weight 2900kg
Gross weight 3200kg
Machine dimension 3000mm*1950mm*1700mm,
Package dimension 3050mm*2000mm*1800mm
Options Automatic length control system, controlled corrugation unit.METU flange slitter Saw blade cutter
