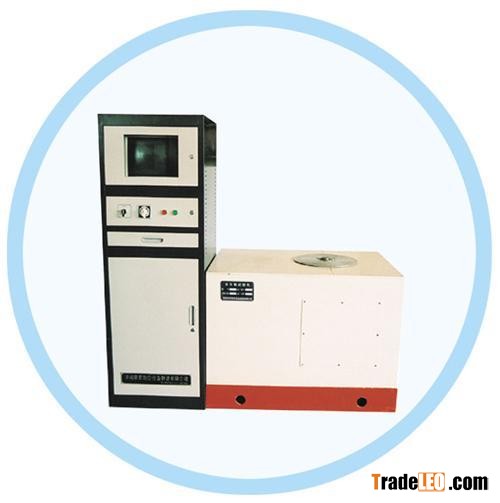

Single Plane Vertical Balancing Machine:The balancing machine is a new and widely-used device which has been available and developed in recent years. It is mainly applied to balance all kinds of discoid parts, such as fanbrake diskbrake drum, saw blade, pulley,etc .. High speed and precision are advanages of thius balancing machine.
Specifications Parameters
Max Mass of Workpiece (with clump) (kg) 42
Max Diameter of Workpiece (mm) 800 ( if the machine is without cover)/510 (with cover)
Height of Workpiecemm 160
Rotation Speed of Main Axis (r/min) 800
Motor Power (kw) 1.5
Min Achievable Residue Unbalace Amount (emar) 5g• mm/kg
