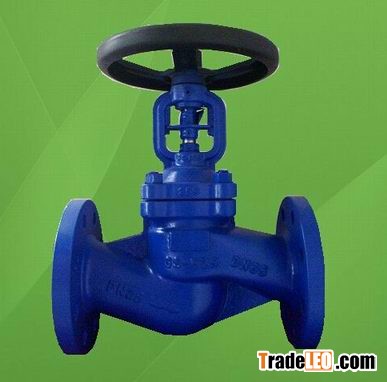

DIN Standard Bellow Sealed Globe Valve

Bellow Sealed Globe Valve Product Structural Features:
DIN Standard Bellow Sealed globe valve ( Os & Y Type ) is applied to various kinds of working conditions of pipelines such as petroleum, chemical industry, pharmacy, fertilizer, and power industry, etc, under nominal pressure in the P N 1.6-40 M pa and operating temperature at -20 – 350C, that is used to cut off or connected to the pipeline medium.


DIN Standard Bellow Sealed Globe Valve



Bellow Sealed Globe ValveTechnical Specification:
1. Construction: BB-BG-OS&Y
2. Operation: Manual, Pneumatic
3. Design Standard: DIN3356
4. Face to Face Dimension: DIN3202
5. Flange Ends: DIN2543-2545
6. Test & Inspection: DIN3230


DIN Bellows Sealed Globe Valve
Pressure Rating: 1.0-4.0Mpa
Specification: DN15-DN500
Material: GS-C25,CF8,CF3
Standard flanges: DIN
