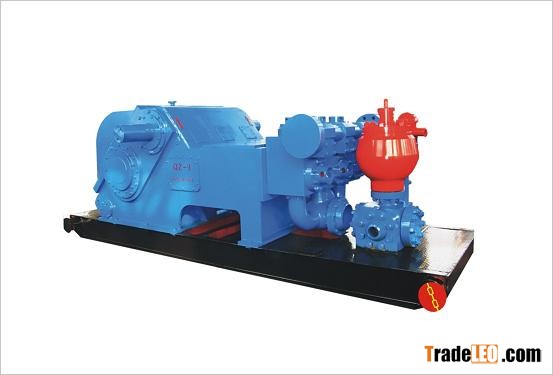

Model PZ-9 mud pump is a horizontal triplex single acting piston pump which has the advanced structure and small in size. It has the reliable performance, good exchangeability, easy maintenance. Specifications (1)Type: Horizontal triplex single acting piston pump. (2)Rated input power 1000HP (3)Rated speed: 130SPM (4)Stroke length 9"(228.6mm) (5)Rated speed of pinion shaft 582 rpm (6)Gear ratio: 4.48: 1 (7)Valve standard: API7# (8)Suction inlet 10" (9)Discharge outlet 5 1/8" (5000PSI) (10)Overall dimension 205X94X100.5in (5200x2388X2550MM) (11)Pump weight 44050 ib(20000kg)
