Price:Negotiable
Brand:Yuan
Quantity:300

Send Inquiry

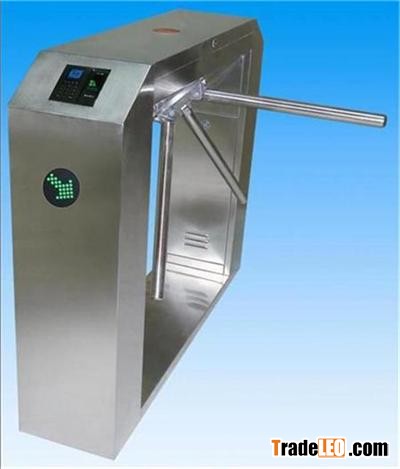

Structure: framework/stainless steel shell
Produce Processing: Laser cutting fully controlled by computer
framework Size: length1200 width:280 height:980(mm)
Thickness of stainless steel :1.5mm
Weight: 70Kg
Length of the pole: 510(mm) out of the framework
The biggest force the pole can hold: 80Kg
Driving force of the pole: 3Kg
Transmission of the pole: digital transmission
The direction of rotation: single direction, bi-direction(optional) .
Light indicator: direction indicating
Working environment: indoor, outdoor(with a tent over)
Temperature: 10degree centigrade below~50degree centigrade Relative humidity: <90%, never coagulated
Time for opening: 0.2second
Transit speed: 30 persons/min
Communication interface: standard RS485 interface, distance less than 1200metres
Input interface: Dry contact signal or +12V level signal or DC12V pulse signal with width of more than 100ms, driving current: > 10mA
