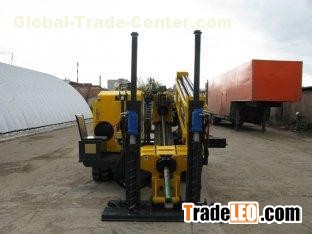

The whole car-mounted integrated equipment of rubber track, adopt the domestic famous-brand Deutz turbo-charged diesel engine, motive force is powerful. Motor - chain feed mechanism, Driller can use two hydraulic clamps for the making up and breaking away of drilling rods easily. Easy operation of all hydraulic drives and central control from the Control Panel. Pairs of hydraulic power wrench device and function console. High drilling rate , reliable functions, high efficiency to work. Mud mixing system with 2m3 tank has high efficiency to mix.

SPECIFICATIONS

Max push capacity	320KN
Max pull capacity	320KN
Rated torque	13000 N.M
Rated speed	Lower 0-50r/min
	High 0-100r/min
Feed travel	3300 mm
Drilling angle	10-20°
Length of pull backward	500 m
Diameter of guide hole	130 mm
Max diameter of reaming	1000 mm
Pressure of hydraulic system	20MPa
Power of drill (diesel Contact Infomation Send Inquiry Company name:Sinocoredrill Group Company Status:[Offline] [Send message] [Chat] Business contact:Yuan Qi (Ms.) Telphone: Mobile: Fax: Area: Caribbean Region-Bermuda Address:No.1 Yangming Development Zone Zip:214000
