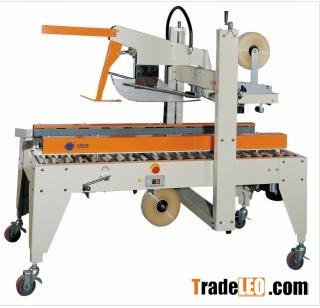

SPC-F05 Carton Sealer
Fit for sealing uniform size carton in mass production line.
Automatic flaps folding and , top and bottom sealing.
Side belts driven, suitable for heavy duty operation.

Technical Parameters
Carton Size L: 200-600mm W: 150-500mm H:120-500mm
Table Height Min. 580mm Max. 780mm
Belt Speed 18m/min
Machine Size L: 1690mm W: 830mm H:1180mm
Power 220V/380V single phase, 50Hz or specified by client
Pneumatic 50kg/cm2
Tape Width 48mm, 60mm, 75mm (alternative use)
Machine Net Weight Approx. 180kgs
