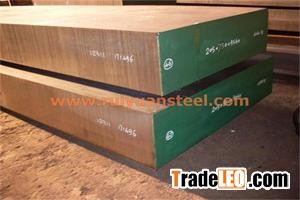

DIN 1.2316 Mould Steel Plate

1. DIN 1.2316/ AISI 420/S136/GB3Cr17NiMnMo

2. Hot rolled condition, annealing or Pre-harden, black surface

3. Hardness: Min. 229HBS or 32~36HRC

4. Hot rolled technology: EAF+LF+VD

2. Backfire: Temperture(° C): 100 200 300 400 500 600

Hardness(HRC): 49 47 46 46 47

5. Production leadtime: 7~10 days

6. Ultrasonic test standards: Sep1921-84, Gr. 3, Class C/C or D/D

Applications:

Used for making the corrosion resistance and wear resistance of high quaity plastic mould, transport Plastic mould, like PVC and CD mould.

Competitive Advantage:

1. Pure & Precision mirror polishing

2. Highly quality of corrosion resistance

3. Convenient heat treatment for quenched&tempered steel, with out deformed

4. Easy for welding

5. Competitive price

6. Fast production leadtime

7. All the material are inspected with 3 times to meet the highly standards material supplied

8. Stable quality to be guarantee
