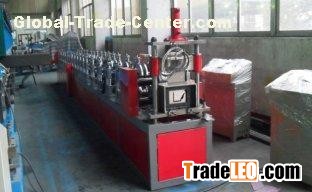

Gutter forming machine With 18 Stations And  375MM Coil Width Roll Forming Machinery

Composition of machine

Roll forming main machine……………………………1 unit

Manual de-coiler…………………………………… …1 unit

Control panel……………………………………………1 unit

Hydraulic station…………………………………… …1 unit

Manual out table……………………… ……………….2 unit

Spare tools……………………………………………...one box

Details of each composition

1: Coil width: about 375MM

2: working speed: 15m/min (not contain cutting)

3: roller station: 10 stations

4: material of roller: 45forge steel, polished and coated with chrome

5:material of main shaft:45forge steel   diameter roller: 76mm

6: main power: 5.5kw

7: forming thickness: 0.4-0.6mm color steel

8: transmission: by Chains

9: feeding : adopt hand wheel to easy adjust the feeding with

10. Control system: PLC

Working flow:

Decoiler----feeding& guiding ----roll forming ----hydraulic cutting----run out table
