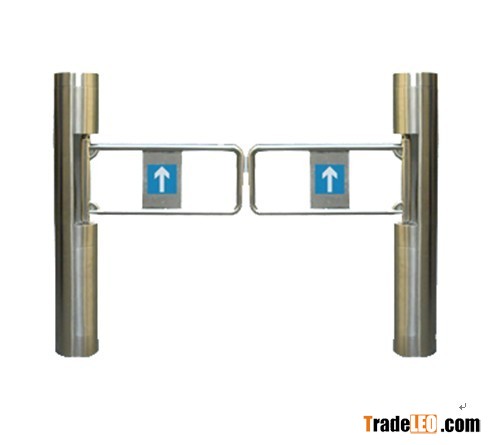

-Weight: 70kg-arm length: 500-700mm
-the strength the arm can bear: 30kg
-the moving angel: 180 degree
-moving direction: bio-directional
-working power: AC220 ±10%V/50 ±10%HZ
- driver engine: Driving electric motor: brush-typed DC motor 200W/24V1.
-input interface: pulse signal 12V, =100ms, driver electronic current =10mA
-Communication interface: RS785, standard distance = 1200 m or TCP/IP
-LED indicator: one
-card read window: 2 pcs
-access speed: 40 people per minute ( normal open ), 25-30 people per minute ( normal close ).
-The time of open/close: 2-3s
-The time of electronic get through to working condition: 3s
-The resetting time: 10s
-working environment: inside of the room, outside of the room ( with shed )
-working temperature: -10-+50 degree, relative humidity: =90%, no drew.
