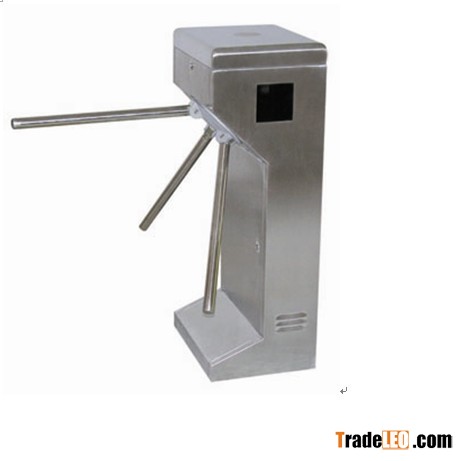

- Structure: frame construction/ stainless steel case (thickness: 1.5mm)- Production technology: computer digital controlled laser cutting
- Dimension: 420*330*980mm
- Weight: 40kg
- Length of pole: 510mm
- Maximum force of the pole: 80kg
- Driving force of the pole: 3kg
- Opening time: 0.2 seconds
- Passage speed: 30 person/ minute
- Communication: RS485 (distance <= 1200m); TCP/IP
- Power: 50W
- Power supply voltage: AC220±10% V,50HZ
- Driving electric motor: brush-typed DC motor (24V)
- Operating life: three million times
- LED indicator: 1 unit
- Card reader windows: 2 units
