ANSSEN Thermocouple, your first choice! 1. Introduction

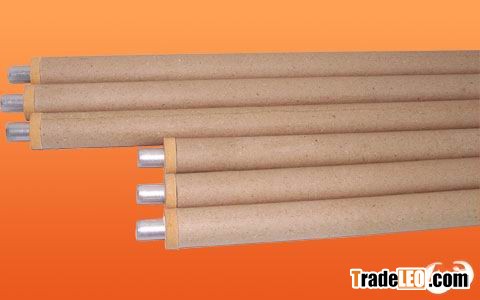

Moddel WP fast thermocouple is a sensor for temperature measurement. It can be connected to a fast potentiometer or a digital instrument to measure temperatures of melted iron, steed or other metals. There are two tupes of thermocorples made in our plant.
WP-KS-602-1000mm
WP-KB-602-1000mm
2. Specification
Table 1
Thermocouple type Composing Materials
+leg(1) -leg(2)
KS Platinum-10%Rhodium Rhodium
KB Platinum-30%Rhodium Platinum-6%Rhodium
KR Platinum-13%Rhodium Rhodium
KW Tungsten-3%rhenium Tungsten-25%rhenium
Note(1): The +leg means a leg to be connected to +terminal of an instrument to measure thermoel ectromotive force, and -leg means oppodite side one.
