Brand:Jinghong
Quantity:500
Send Inquiry

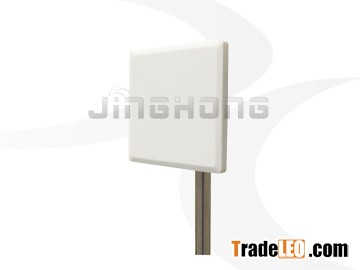

JHP-2425-15CR40JHP-2425-15CR40 is a combines high gain with wide 40°beamwidth circular(right) pannel antenna , Applicable to RFID .
? IP66 Waterproof Level
? UV Protected Radome
? RoHS Compliant
Electrical
Model JHP-2425-15CR40
Frequency Range 2400-2483MHz
Gain 15 dBi
VSWR =1.5
3dB Beam-Width, H-Plane 40°
3dB Beam-Width, E-Plane 40°
Polarization Right Circular
Upper Side Lobes dB
Front to Back Ratio =25 dB
Maximum Input Power 100 Watt
Impedance 50 O
Lightning Protection DC Grounded
Mechanical
Connector N Female
Antenna Dimension 270×270×22 mm
Weight 1.4 KG
Radome Material UV Protected ABS
Mounting Mast Diameter Ø40~Ø60 mm
Operating Temperature -40° C to +65° C
Rated Wind Velocity 216 Km/h
