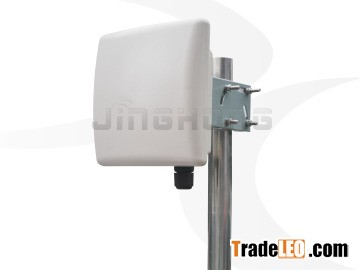

JHCPE-2425-14V35CA is a high performance CPE antenna designed for the 2.4 GHz band, and is well suited for multipoint applications where high gain and wide coverage is desired.Its dimension is 200*200*100mm.? IP66 Waterproof Level
? UV Protected and Durable ABS Radome
? 2.4GHz Integrated CPE Application
? RoHS Compliant
Electrical
Model JHCPE-2425-14V35CA
Frequency Range 2400-2483 MHz
Gain 14 dBi
VSWR =1.5
3dB Beam-Width, H-Plane 35°
3dB Beam-Width, E-Plane 35°
Polarization Vertical or Horizontal
Maximum Input Power 100 Watt
Impedance 50 O
Lightning Protection DC Grounded
Mechanical
Connector SMA Female or Customized
Antenna Dimension 200×200×100 mm
Weight 1.4 KG
Radome Material UV Protected ABS
Mounting Mast Diameter Ø40~Ø60 mm
Operating Temperature -40° C to +65° C
Rated Wind Velocity 216 Km/h
