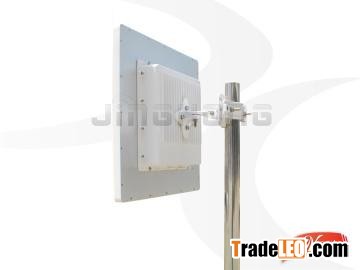

JHP-2425-21V15E is a bridge antenna combined high gain and 15°beamwidth,it’s suitable for outdoor applications in the 2.4GHz band.CPE can be put in enclosure.Wide 15° Horizontal Beamwidth
IP66 Waterproof Level
UV Protected ABS Radome
Strong X Type Bracket
RoHS Compliant
Electrical
Moded JHP-2425-21V15E
Frequency Range 2400-2483 MHz
Gain 21 dBi
VSWR =1.5
3dB Beam-Width H-Plane 15°
3dB Beam-Width E-Plane 15°
Polarization Vertical or Horizontal
Upper Side Lobes dB
Front to Back Ratio >28 dB
Maximum Input Power 100 Watt
Impedance 50 O
Lightning Protection DC Grounded
Mechanical
Connector SMA Female or Customized
Inner Space 233×233×45 mm
Antenna Dimension 400×400×80 mm
Weight 3.8 KG
Radome Material UV Protected ABS
Enclosure Material Aluminium Die Cast
Mounting Mast Diameter Ø40~Ø60 mm
Operating Temperature -40° C to +65° C
Rated Wind Velocity 216 Km/h
Tips: The Enclosure is suitable for RouterBoard of MikroTik RB711 , RB411 , RB433, RB450 , RB493.
