Brand:Jinghong
Quantity:2000
Send Inquiry

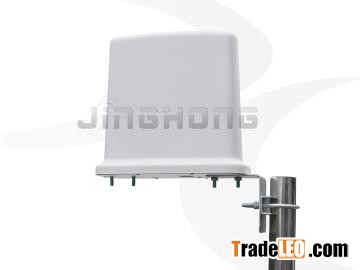

JHCPE-2425-14V35 is a high performance CPE antenna designed for the 2.4 GHz band, and is well suited for multipoint applications where high gain and wide coverage is desired.IP66 Waterproof Level
UV Protected and Durable ABS Radome
Heavy-duty Extruded Aluminum Bracket and Stainless
RoHS Compliant
Electrical
Model JHCPE-2425-14V35
Frequency Range 2400-2483 MHz
Gain 14 dBi
VSWR =1.5
3dB Beam-Width, H-Plane 35°
3dB Beam-Width, E-Plane 35°
Polarization Vertical or Horizontal
Maximum Input Power 100 Watt
Impedance 50 O
Mechanical
Connector Customized
Antenna Dimension 230×220×120 mm
Weight 1.2 KG
Radome Material ABS
Mounting Mast Diameter Ø40~Ø60 mm
Operating Temperature -40° C to +65° C
