Brand:BOTE
Quantity:10000
Send Inquiry

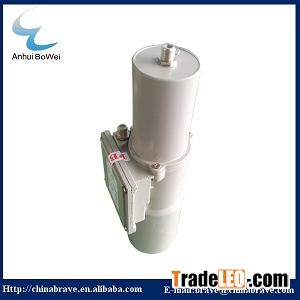

C/KU Dual Band High Gain Lnbf- Receiving all single and dual polarized C-band and Ku-band signals
- superior signal and low noise
-High quality best price
-Supply OEM]
Specifications of C/KU Band LNBF
1. Input Frequency: C Band: 3.4-- 4.2GHz
Ku band: 10.7-11.7GHz
2. L.O. Frequency: C Band: 5150MHz
KU band 9.75/10.6GHz
3. Output Frequency: C Band: 950 to 1750 MHz
KU band: 950-2000MHz
4. L.O. Leakage Input Port: 45dBm
5. L.O. Stability: ±2MHz (-40centigrade to +70centigrade)
6. Noise Figure): C band :< 17°K typ
KU band: 0.2db
7. Conversion Gain: C band: 65dB (min)
KU band: 60db (min)
8. Gain Flatness: ±1 dBm (max)
9. Input VSWR: 2.5:1(max)
10. Output VSWR: 2.0:1(max)
11. Output Connector: F-female Connector
