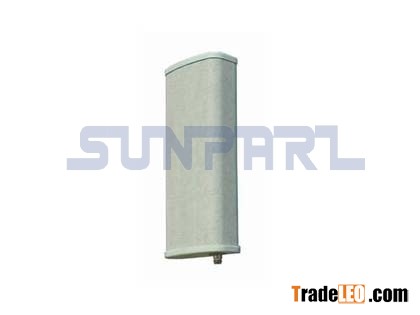

Electrical Specifications Model SPDB-2400-13V120
Frequency Range-MHz 2400-2483
Gain-dBi 13
VSWR =1.5
Horizontal Beamwidth-° 120
Vertical Beamwidth-° 15
F/B Ratio-dB >25
Polarization Vertical
Impedance -O 50
Maximum Input Power-W 100
Connector N Female
Mechanical Specifications
Antenna Dimension-mm 430×160×70
Weight-Kg 1.8
Radome Material Fiberglass
Mounting Mast Diameter-mm Ø30~Ø50
Rated Wind Velocity-Km/h 241
