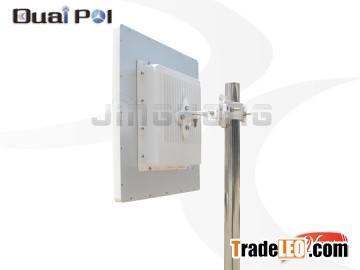

JHP-3338-19D16E is a dual polarization enclosure antenna.It’s a professional quality antenna designed for service providers in 3.3-3.8GHz broadband. CPE can be put in enclosure.Electrical
Model JHP-3338-19D16E
Frequency Range 3300-3500 MHz 3500-3800 MHz
Gain 18.5 dBi 19.3 dBi
VSWR =1.7(V Port), =1.5(H Port)
3dB Beam-Width H-Plane 18°
3dB Beam-Width V-Plane 16°
Polarization Vertical & Horizontal
Upper Side Lobes >12 dB(V Port) , >11 dB(H-Port)
Front to Back Ratio >30 dB
Port to Port Isolation >35 dB
Maximum Input Power 100 Watt
Impedance 50 O
Lightning Protection DC Grounded
Mechanical
Conntctor 2 × N Female
Inner Space 233×233×45 mm
Antenna Dimension 400×400×80 mm
Weight 3.8 KG
Radome Material UV Protected ABS
Enclosure Material Aluminium Die Cast
Mounting Mast Diameter Ø40~Ø60 mm
Operating Temperature -40° C to +65° C
Rated Wind Velocity 216 Km/h
Tips: The Enclosure is suitable for RouterBoard of MikroTik RB711 , RB411 , RB433, RB450 , RB493.
