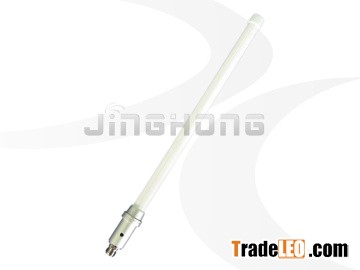

JHQ-2425-10 is economical yet high performance omnidirectional Wi-Fi antenna designed for image / data voice communications / wireless LAN system and other multipoint applications where wide coverage is desired.Electrical
Model JHQ-2425-10
Frequency Range 2400-2483 MHz
Gain 10 dBi
VSWR =1.5
3dB Beam-Width, H-Plane 360°
3dB Beam-Width, E-Plane 10.5°
Polarization Vertical
Out Of Roundness <3 dB
Maximum Input Power 100 Watt
Impedance 50 O
Lightning Protection DC Grounded
Mechanical
Connector N Female
Antenna Dimension F19×1060 mm
Weight 0.6 KG
Radome Material Fiberglass
Mounting Mast Diameter Ø40~Ø60 mm
Operating Temperature -40° C to +65° C
Rated Wind Velocity 216 Km/h
Tips: All of our omni-directional antenna is available in two colors white and gray for customers to choose,the diameter of JHQ-2425-10 antenna is F19,if need diameter of F30,pls buy JHQ-2425-10A.
