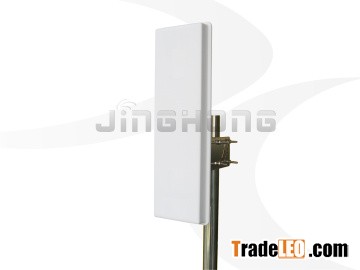

JHS-2425-13V120A is a ABS sector antenna in the 2.4-2.483GHz,applied to 2.4GHz WiFi / WiMAX signal coverage,Supports IEEE802.11b/g and 802.16d protocol,it has small dimension,light weight,high gain features.Electrical
Model JHS-2425-13V120A
Frequency Range 2400-2483 MHz
Gain 13 dBi
VSWR =1.5
3dB Beam-Width H-Plane 120°
3dB Beam-Width E-Plane 15°
Polarization Vertical
Upper Side Lobes >22 dB
Front to Back Ratio >23 dB
Maximum Input Power 100 Watt
Impedance 50 O
Lightning Protection DC Grounded
Mechanical
Connector N Female
Antenna Dimension 450×140×35 mm
Weight 1.26 KG
Radiom Material UV Protected ABS
Mounting Mast Diameter Ø40~Ø60 mm
Operating Temperature -40° C to +65° C
Rated Wind Velocity 216 Km/h
