Applications

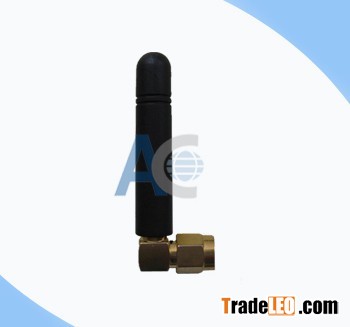

AP Antenna is designed for the GSM/ CDMAspread spectrum communication system.
After optimizing the design and tuning carefully, it has good VSWR.

Features
The small dimension and light structure make it easy to install.
It also has good shockproof and anti-aging performance

Electrical Specifications:

Model
Q9018-40W
Q8019-40W
Frequency Range
890-960/ 1710-1880MHz
824-896/ 1850-1990MHz
Gain
2.5dBi gain
VSWR
2.0
Polariz ation
Vertical
Impedance
50
Maximum Input Power
50W
Connector
SMA Male
Operating Temperature
-40 to+ 80
Mechanical Specifications:
Antenna Dimension
8/ 47mm
Weight
10g
