Brand:Antenna
Quantity:800
Send Inquiry

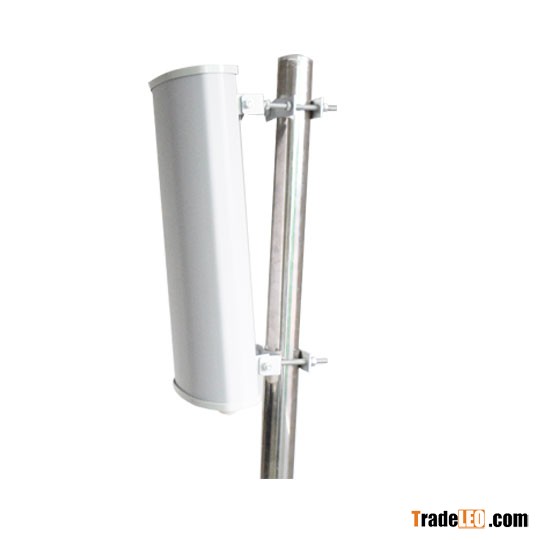

sectors covered by Service.Characteristic:Frequency bandwidth, covering 865-868/902-928 MHz reader with antenna, equipped with mechanical angle adjusting code, easy installation, adjustable angle.
Specifications
Model: D900B1565K / D860B1565K
Frequency Range (MHz): 902~928 / 865~868
Band Width (MHz): 26 / 3
Gain(dBi): 15
Beam Width E-Plane(°) : 16
Beam Width H-Plane(°): 65
VSWR: =1.5
F/B (dB): =25
Polarization: Linear Polarization
Max Power(W): 100
Impedance(O): 50
Connector: N-female or user specified
Weight(kg): 5.5
Dimensions(mm): 1200×180×90 / 1230×180×90
Radome Material: Fiberglass
