Brand:Antenna
Quantity:1500
Send Inquiry

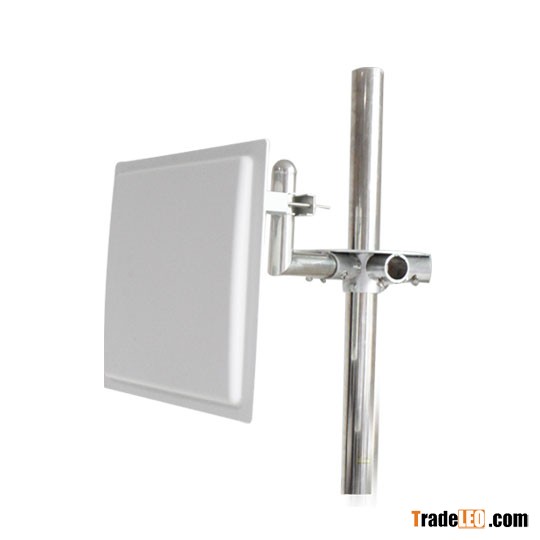

Application: Radio-frequency reader antenna, used for terminals, parking lots, shopping malls, toll station.Characteristic: Pleasing in appearance, environmental adaptability, easy installation.
Specifications
Model: D900B1260K1 / D860B1260K1
Frequency Range (MHz): 902~928 / 865~868
Band Width (MHz): 26 / 3
Gain(dBi): 12
Beam Width E-Plane(°) : 40
Beam Width H-Plane(°): 38
VSWR: =1.3
F/B (dB): >25
Polarization: Circular Polarization
Max Power(W): 100
Impedance(O): 50
Connector: N-female or user specified
Weight(kg): 4.5
Dimensions(mm): 445×445×40
Radome Material: ABS
