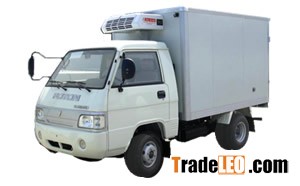

MODEL ZZT5020XLC CHASSIS ID NO. BJ1020V3JA2
category ?
manufacturer BEIQI FOTON MATOR CO.,LTD
axle 2
wheel base(mm) 2300
wheel track(front/rear mm) 1300/1240
tire size 6.00-13
tire 6
ENGINE model QC480ZLQ
manufacturer Anhui Quanchai Power Co.,Ltd
delivery capacity(ml) 1809
fuel diesel fuel
rated power(Kw) 38
emission standard GB18352.2-2001, EURO? GB3847-2005
frame FRONT type steel plate spring
quantity 5
BACK type steel plate spring
quantity 3+2
CAR LOAD dimension parameters overall dimensions(mm) 4450*1700*2500
L*W*H
interior cargo body dimensions(mm) 2440*1500*1450
L*W*H
cubage(m3) 5.3
front overhang/rear overhang(mm) 970/1180
quality parameters approach angle/departure angle(°) 22/18
curb weight(Kg) 1780
rated payload(Kg) 450
gross vehicle weight(Kg) 2360
max. speed(km/h) 80
Persons in cab (persons) 2
