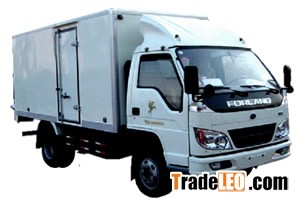

MODEL ZZT5040XBW CHASSIS ID NO. BJ1043V9JE6-MS/1223609
category ?
manufacturer BEIQI FOTON MATOR CO.,LTD
axle 2
wheel base(mm) 3360
wheel track(front/rear mm) 1590/1525
tire size 7.00-16,6.50-16,7.00R16,6.50R16
tire 6
ENGINE model CA4DC2-10E3
manufacturer Faw Jiefang Automobile Co., Ltd. Dalian Diesel Engine Branch
delivery capacity(ml) 3168
fuel diesel
rated power(Kw) 76
emission standard GB17691-2005 EURO?,GB3847-2005
frame FRONT type steel plate spring
quantity 4
BACK type steel plate spring
quantity 6+7
CAR LOAD dimension parameters overall dimensions(mm) 5995*2120*2980
L*W*H
interior cargo body dimensions(mm) 4060*1910*1800
L*W*H
cubage(m3) 14
front overhang/rear overhang(mm) 1100/1535
quality parameters approach angle/departure angle(°) 23/17,19
curb weight(Kg) 2755
rated payload(Kg) 1450
gross vehicle weight(Kg) 4400
max. speed(km/h) 95
Persons in cab (persons) 3
