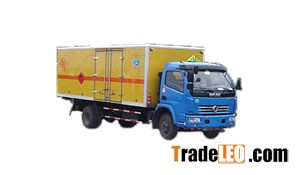

MODEL ZZT5120XQY CHASSIS ID NO. EQ1122TJ12D6/1228635
category ?
manufacturer CY4102-C3B
axle 2
wheel base(mm) 4700
wheel track(front/rear mm) 1835/1640
tire size 8.25-16,8.25-20
tire 6
ENGINE model CY4102-C3B
manufacturer Dongfeng Chaoyang Diesel engine Co.,Ltd
delivery capacity(ml) 3856
fuel diesel
rated power(Kw) 100
emission standard GB3847-2005,GB17691-2005 EURO?
frame FRONT type steel plate spring
quantity 11
BACK type steel plate spring
quantity 13+8
CAR LOAD dimension parameters overall dimensions(mm) 8300*2280*3250
L*W*H
interior cargo body dimensions(mm) 6300*2150*2000
L*W*H
cubage(m3) 27.09
front overhang/rear overhang(mm) 1270/2330
quality parameters approach angle/departure angle(°) 28/14
curb weight(Kg) 6400
rated payload(Kg) 5900
gross vehicle weight(Kg) 12495
max. speed(km/h) 90
Persons in cab (persons) 3
