General information:Connector part:

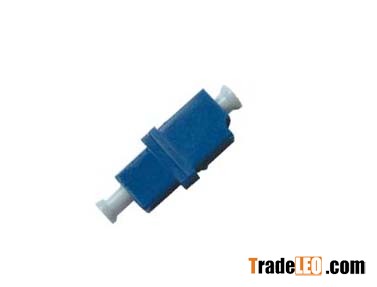

- LC/PC (Blue), Simplex, PEI,
Sleeve part:
- Zirconia ceramic, Concentricity <20µm, Ø 1.246mm
Cap part:
- Black, Plastic dust caps
Performance:
- Acc. to IEC 61753-1 and Telcordia-GR-326-CORE standard.
Applications:
(1).CATV
(2).Metro
(3).ODF
(4).FTTH projects
(5).Test instruments
Technical data:
Technical Data
Fiber Type SM
Inner Diameter 1.246mm
Connector Type LC/PC
Concentricity 20µm
Insertion loss(Typical) 0.1dB
Insertion loss(Max) 0.2dB
Mating Durability(500 times) 0.2dB
Repeatability 0.1dB
Operation Temperature -40?~+85?
Storage Temperature -40?~+85?
